How to Program an Arduino: A Beginner’s Guide

06 Jul, 2024
Posted by: BATFLAP TECH PVT LTD Admin

Arduino is a powerful and versatile platform for creating a wide range of electronic projects. Whether you're a hobbyist, student, or professional, learning how to program an Arduino opens up a world of possibilities. In this guide, we'll walk you through the basics of programming an Arduino, from setting up your environment to writing and uploading your first program.

What You’ll Need

An Arduino board (e.g., Arduino Uno)
USB cable (to connect the Arduino to your computer)
Laptop/PC (with internet access)
Arduino IDE (Integrated Development Environment)

Step 1: Install the Arduino IDE
The Arduino IDE is the software you’ll use to write and upload code to your Arduino board. Follow these steps to install it:

Download the Arduino IDE: Visit the Arduino website and download the latest version of the IDE for your operating system (Windows, macOS, or Linux).
Install the IDE: Follow the installation instructions for your operating system. Once installed, open the Arduino IDE.

Step 2: Connect Your Arduino

Connect the Arduino Board: Use the USB cable to connect your Arduino board to your computer. The power LED on the Arduino should light up.
Select the Board and Port: In the Arduino IDE, go to Tools > Board and select your Arduino model (e.g., Arduino Uno). Then go to Tools > Port and select the port to which your Arduino is connected. On Windows, it will be something like COM3 or COM4; on macOS, it will look like /dev/tty.usbmodemXXXX.

Step 3: Write Your First Program
Arduino programs are called “sketches.” Let’s write a simple sketch to blink an LED on the Arduino board:

Open a New Sketch: In the Arduino IDE, go to File > New to open a new sketch.

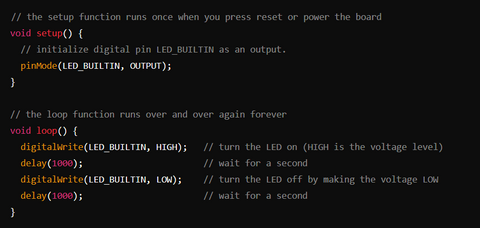

Write the Code: Enter the following code into the sketch:

This code will make the built-in LED on the Arduino board blink on and off every second. Step 4: Upload the Program

Verify the Code: Click the checkmark button in the Arduino IDE to verify your code. This checks for errors.
Upload the Code: Click the arrow button to upload the sketch to your Arduino. The TX and RX LEDs on the Arduino should blink, indicating data transfer.

Step 5: Observe the Result After uploading the sketch, the built-in LED on your Arduino board should start blinking on and off every second. Congratulations, you’ve just programmed your Arduino! Step 6: Experiment and Learn Now that you’ve successfully uploaded your first program, you can start experimenting with more complex sketches. Here are a few ideas:

Blink an External LED: Connect an external LED to one of the Arduino's digital pins and modify the sketch to blink it.
Read a Sensor: Connect a sensor (e.g., temperature sensor, light sensor) and write a sketch to read and display its values.
Control a Motor: Use a motor driver to control a DC motor or a servo motor with your Arduino.

Additional Resources

Arduino Tutorials: The official Arduino website has a wealth of tutorials for beginners and advanced users.
Arduino Forum: Join the Arduino community to ask questions, share projects, and get help from experienced users.

Conclusion Programming an Arduino is a fun and educational experience that can lead to countless creative projects. With the basics covered, you’re ready to explore more advanced concepts and create your own unique inventions.
