Build a Touch-Activated Control System Using Arduino Nano, Touch Sensor, and Relay Module | KitKraft Touch Control Project
In today’s blog, we’re diving into a simple yet powerful project that lets you control devices with just a touch! Using an Arduino Nano, a touch sensor module, and a relay module, you’ll learn how to create a touch-activated control system that’s perfect for automating home devices or adding interactivity to your DIY projects. Let’s get started! 🤚🔌
Why Build a Touch-Activated Control System?
Touch-sensitive technology is everywhere these days, from smartphones to smart home devices. With just a simple touch, you can turn lights on and off, control appliances, or trigger different systems in your environment. This project uses basic components that are easily accessible and highly flexible, allowing you to control anything from LED lights to fans or even larger devices like motors.
This project is ideal for beginners looking to dive into home automation, and it's also a fun way to get hands-on experience with Arduino and relay control.
📋 Components Used in This Project:
- Arduino Nano – The brains of the project that processes input from the touch sensor and controls the relay.
- Touch Sensor Module – A capacitive touch sensor that detects when you touch it, functioning like a switch.
- Relay Module – This module controls the power to connected devices like lights or motors, acting as the interface between low-power control and high-power devices.
- Jump Wires – To connect the components together.
You can find all these components at KitKraft.in, your one-stop shop for Arduino, DIY kits, and electronics in India!
🛠️ How It Works:
The touch sensor module detects a touch input from your hand. Once touched, it sends a signal to the Arduino Nano, which processes this signal and activates the relay module. The relay can then control any connected electrical device, allowing you to switch it on or off with just a tap. This basic mechanism is useful in countless applications, such as smart lighting, interactive art installations, and home automation systems.

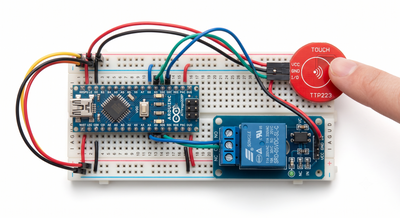

🔧 Wiring & Circuit Setup:
Here’s a quick overview of how to wire the components:
-
Touch Sensor to Arduino Nano:
- VCC (Touch Sensor) to 5V (Arduino Nano)
- GND (Touch Sensor) to GND (Arduino Nano)
- SIG (Touch Sensor) to D2 (Arduino Nano)
-
Relay Module to Arduino Nano:
- VCC (Relay) to 5V (Arduino Nano)
- GND (Relay) to GND (Arduino Nano)
- IN (Relay) to D5 (Arduino Nano)
-
Relay to Load:
- Connect the NO (Normally Open) terminal of the relay to one side of the device you want to control.
- Connect the COM (Common) terminal to the other side of the device.
Now, you’re all set to upload the code and test it!
⚙️ Applications and Ideas:
- Smart Lighting: Use this setup to create touch-controlled lights for your room or workspace.
- Home Automation: Automate household devices like fans, lamps, or even door locks with a touch of a button.
- Interactive Art: Build installations that react to touch for a dynamic and engaging experience.
- DIY Touch Control Projects: Add touch-sensitive controls to any electronic project, giving it a sleek and modern feel.
📦 Where to Buy Components:
You can get all the components used in this project at Kitkraft.in, India’s leading store for Arduino, DIY kits, and electronic components. Explore a wide range of sensors, modules, and microcontrollers for all your projects.
🔧 Wiring & Code:
For complete wiring instructions and downloadable code, head over to our GitHub repository: https://github.com/kitkraftin/Arduino_Touch_Relay.git
🔧 Watch the Project in Action:
🚀 Conclusion:
Building a touch-activated control system using an Arduino Nano, touch sensor, and relay module is a rewarding project that opens up endless possibilities. Whether you’re looking to experiment with home automation or add interactive features to your projects, this simple setup is a fantastic starting point. With a few basic components, you can control any device with just a touch.
We hope this project inspires you to create your own touch-activated devices! If you enjoyed this tutorial, be sure to check out our other projects and follow KitKraft for more exciting DIY electronics ideas.
👉 Don’t forget to subscribe and follow KitKraft for more tutorials and innovative electronics projects!
#Arduino #DIYProjects #Electronics #TouchSensor #RelayModule #KitKraft #ArduinoNano #STEM #TechProjects #HomeAutomation #MakersGonnaMake
Let us know in the comments what you plan to automate with your new touch-activated control system!
