MPU6050 - Triple Axis Gyro Accelerometer Module

Name: MPU6050 - Triple Axis Gyro Accelerometer Module
Brand: Kitkraft
SKU: KK000036
Price: 125.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

Available:

Only 10 items in stock

10 items in stock

In stock

Pre-order

Out of stock

Rs. 125.00

~~Rs. 150.00~~

(Excluding 18% GST)

Price (including tax): Rs. 147.50

Want it delivered by

Description
Features
Applications
Video
Reviews

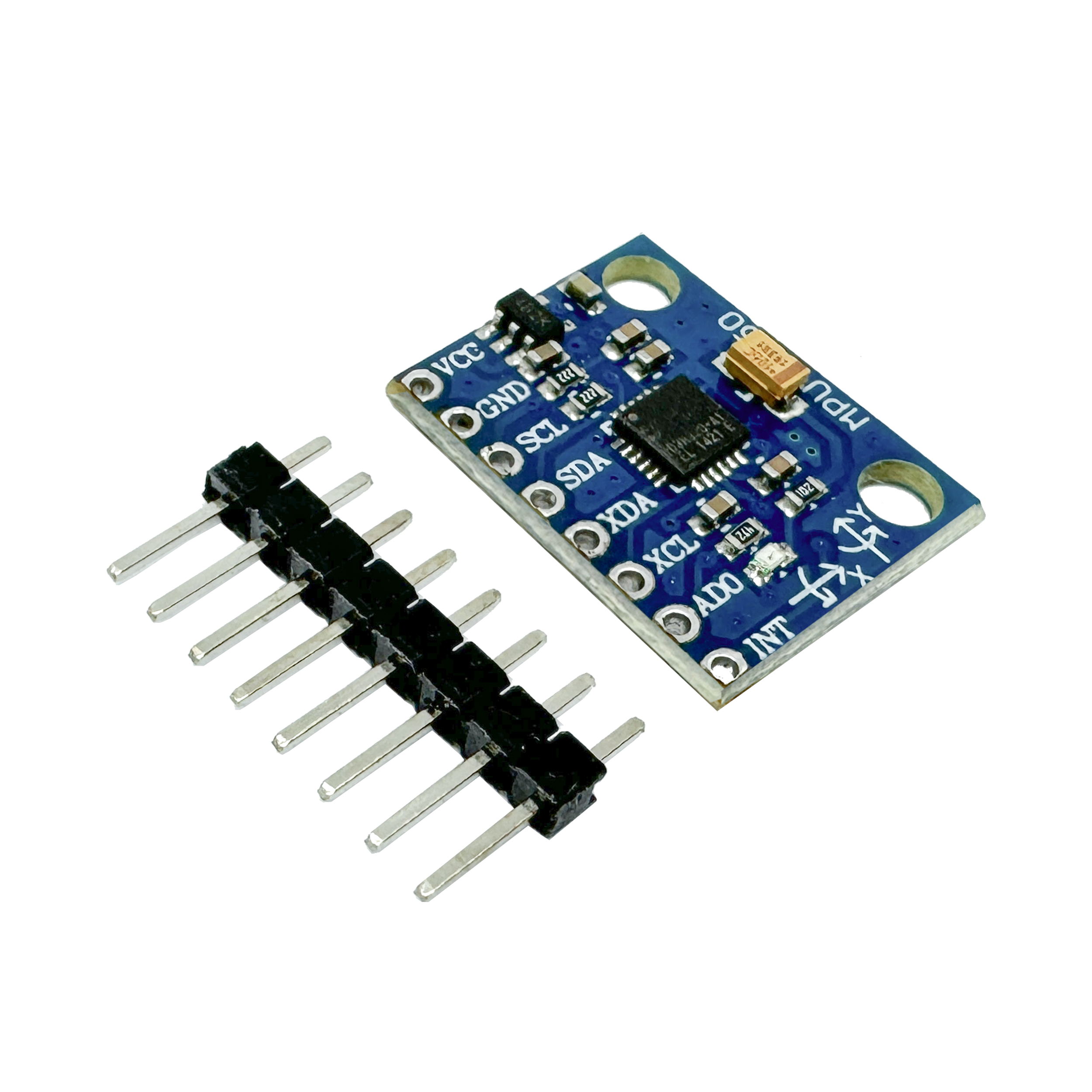

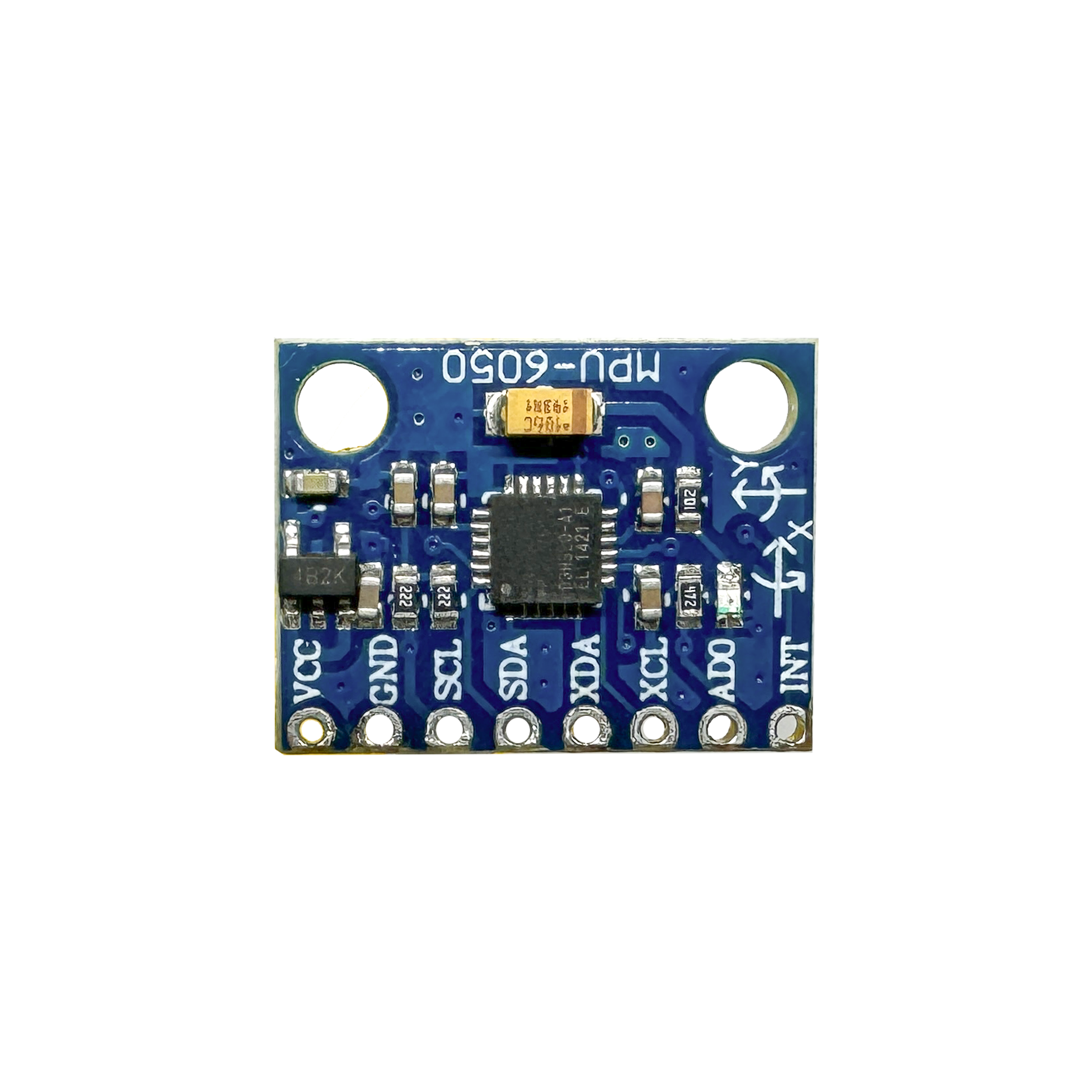

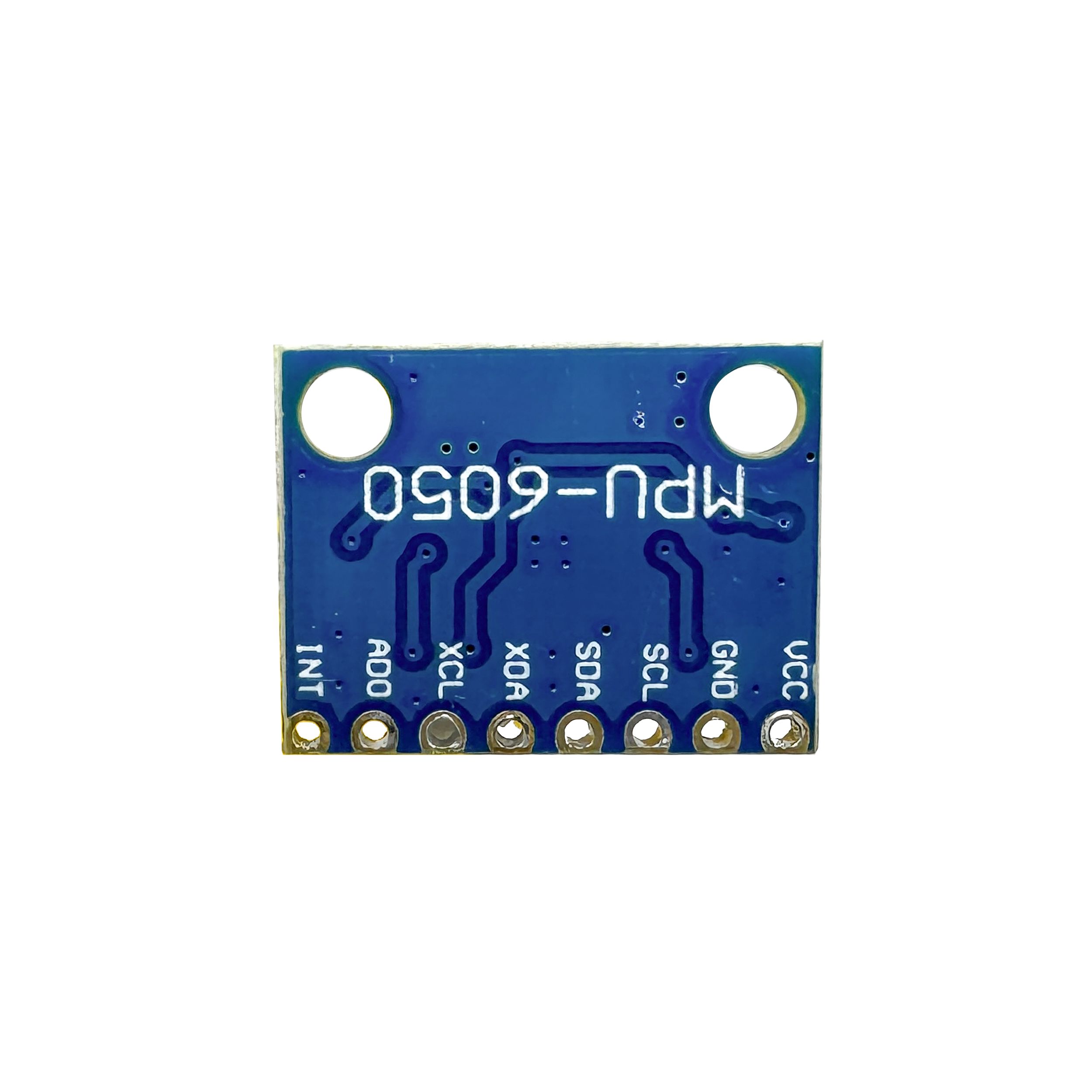

MPU6050 Module - 3-Axis Accelerometer and Gyroscope

The MPU6050 module utilizes the highly popular MPU6050 sensor, which combines a 3-axis accelerometer and a 3-axis gyroscope in a single package. This integrated solution simplifies design and usage, eliminating cross-axis alignment issues present in separate accelerometer and gyroscope ICs. The sensor interfaces through an I2C connection, allowing for an easy and direct interface with microcontrollers.

The MPU-6000/MPU-6050 family of sensors are the world’s first and only 6-axis Motion Tracking devices, specifically designed for the low power, low cost, and high-performance requirements of smartphones, tablets, and wearable sensors.

The 6 Degrees of Freedom (DoF) sensor breakout integrates the MPU6050 sensor, a low noise 3.3V regulator, and pull-up resistors for the I2C bus. This makes it straightforward to connect the sensor to Arduino processors for your robotics, HCI, and wearable projects.

Popular MPU6050 IC: Combines a 3-axis accelerometer and gyroscope in a single package for simplified design and usage.
I2C Interface: Digital I2C interface for easy sensor output reading.
Integrated 6-Axis Motion Tracking: The world’s first 6-axis motion tracking device designed for low power and high performance.
Input Voltage: 2.3V - 3.4V.
Selectable Solder Jumpers: Available on CLK, FSYNC, and AD0 for customization.
Tri-Axis Gyroscope: Sensitivity up to 131 LSBs/dps with full-scale ranges of ±250, ±500, ±1000, and ±2000dps.
Tri-Axis Accelerometer: Programmable full-scale ranges of ±2g, ±4g, ±8g, and ±16g.
Embedded Algorithms: For run-time bias and compass calibration, requiring no user intervention.
Digital-Output Temperature Sensor: Provides additional environmental data.

Robotics Projects: Ideal for applications requiring precise motion tracking.
Human-Computer Interaction (HCI): Enhances the functionality of HCI devices.
Wearable Technology: Perfect for integrating into wearable sensors and devices.
General Motion Sensing: Suitable for a wide range of motion sensing applications.

The MPU6050 module is a versatile and powerful solution for your motion tracking needs, providing accurate and reliable performance in a compact form factor.
